Medium Winding Machine for Producing Spiral Wound Gasket
Medium winding machine for producing spiral wound gasket can make 6'' to 60'' spiral wound gasket
Content

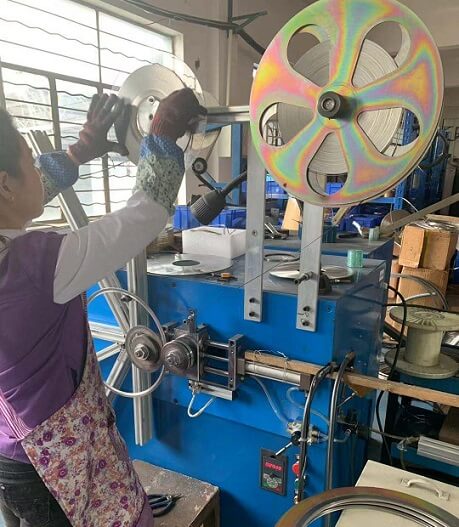

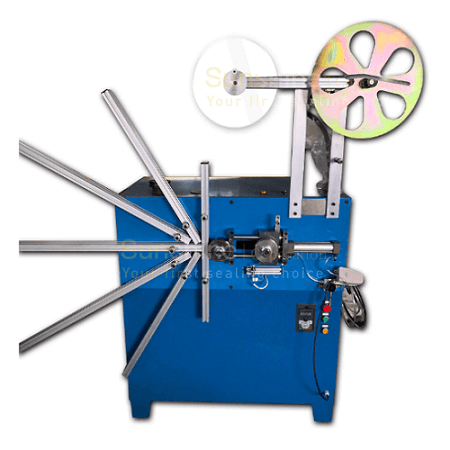

Medium Winding Machine for Producing Spiral Wound Gasket - WSG02
Medium winding machine for producing spiral wound gasket is used to manufacture spiral wound gasket with inner ring or without inner ring from φ200 mm to φ1500 mm. The very new style can make the gasket machine more steady and function well.The medium winding machine for producing spiral wound gasket can use V-shape or W-shape stainless steel tape to make 3.2mm 4.5mm 6.4mm 7.2mm thickness spiral wound gaskets.
Technical Specification for Gasket Machine WSG02
| Description | Value | Unite |
| Operation Type | semi-automatic | - |
| Gasket thickness | 3.2 or 4.5 | mm |
| Min gasket inner ring | Φ 150 | mm |
| Max gasket outer ring |
Φ 1500 |
mm |
| Tolerance of gasket |
+/- 0.5 |
mm |
| Total Power | 2.2 | kw |
| Power voltage | 220/380 as need | V |
| Net weight Max | 260 | kgs |
| Machine dimension | 220*86*182 | cm |
