Large Horizontal Spiral Wound Gasket Machine
Large Horizontal Spiral Wound Gasket Machine can produce large size SWG gaskets from 250 mm to 2500 mm
Content

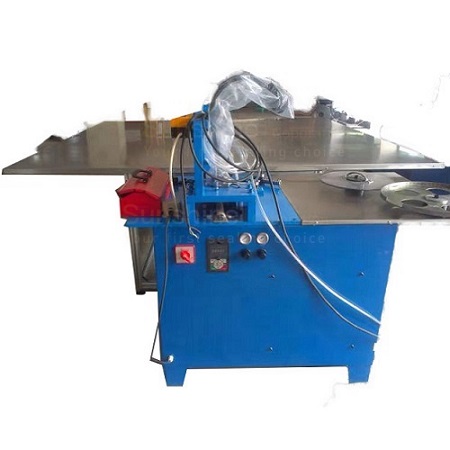

Large Horizontal Spiral Wound Gasket Machine - WSG03
Large horizontal spiral wound gasket machine is used for producing spiral wound gaskets size range from Φ250 mm to Φ2500 mm. This gasket machine is very easy to handle to produce spiral wound gaskets. And now WSG03 this kind of spiral wound gasket machine can spot the gasket automaticlly. And it is easy to change the speed of producing spiral wound gaskets, easy for making different sizes of spiral wound gaskets.
Technical Specification
| Description | Value | Unite |
| Operation Type | semi-automatic | - |
| Gasket thickness | 3.2 or 4.5 | mm |
| Min gasket inner ring | Φ 250 | mm |
| Max gasket outer ring |
Φ 2500 |
mm |
| Tolerance of gasket |
+/- 0.5 |
mm |
| Power | 0.4 | kw |
| Power voltage | 220/380 as need | V |
| Net weight Max | 500 | kgs |
| Machine dimension | 145*75*125 | cm |
