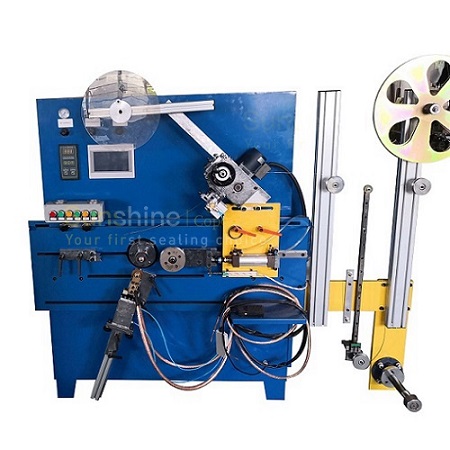

CNC Automatic Winding Machine For Spiral Wound Gasket
CNC automatic winding machine for spiral wound gasket is our very new and high quality SWG gasket machine. Can make 1/2'' to 12'' sizes spiral wound gaskets
Content
CNC Automatic Winding Machine For Spiral Wound Gasket - WSG04
CNC automatic winding machine for spiral wound gasket is commonly used in making spiral wound gasket diameter measurements from φ15 to φ500 mm, the CNC automatic winding machine for spiral wound gasket is designed to increase productivity, insure the repeatability of quality as well as function simply just. Any time functioning, just need to supply stainless steel strip and also filler material to make spiral wound gasket with inner ring or without inner ring from 15 mm to 500 mm gasket size. Product amount, revolutions, gasket sizes and welding parameter like welding point amount and situation are set simply by touch PLC screen.Right after establishing the gasket sizes in producing, the machine will quit automatically when the gasket size reach set up diameter. In this way gasket quality is handled strictly as set parameter and it make work easily by preform handling of metal strip and automatic welding.
Technical Specification
| Description | Value | Unite |
| Operation Type | Automatic | - |
| Gasket thickness | 3.2 or 4.5 | mm |
| Min gasket inner ring | Φ 15 | mm |
| Max gasket outer ring |
Φ 500 |
mm |
| Tolerance of gasket |
+/- 0.3 |
mm |
| Power | 1.5 | kw |
| Power voltage | 220/380 as need | V |
| Net weight Max | 480 | kgs |
| Machine dimension | 135 * 92 * 160 | cm |
