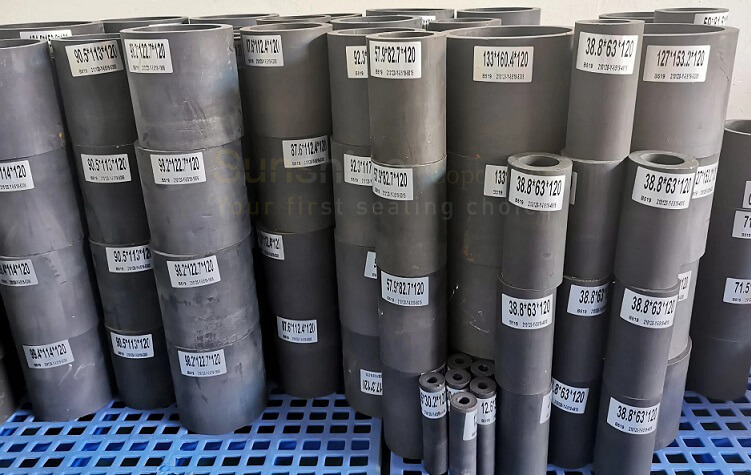

Stainless Steel Filled PTFE Tube
Stainless Steel Filled PTFE Tube can be in 50% by weight (or 15% by volume), and the stainless steel usually is 316L, 304. Other stainless steel also available according to your need.
Content
Style 9003 - SS Filled PTFE Tube
Stainless steel filled PTFE tube has improved mechanised attributes by the use of a 50% by weight (or 15% by volume) stainless-steel powder filling up. Stainless steel filled PTFE tube is especially really hard wearing, features exceptional strength and steadiness under extreme loads and raised temperature ranges whilst still holding onto the small coefficient of friction of regular PTFE. It is an extremely flexible product and could be used on water vapor and also thermal fluid purposes.
It is also a really great seat fabric for use in V-Ball type flow control ball valve purposes due to its high potential to deal with wear.
The stainless steel filled ptfe tube solution delivers enhanced resistance to deformation under load and provides a similar dynamic friction coefficient for the bronze powder and glass fiber filled option. It is just a chosen alternative in the foods producing industry mainly because of the elements advanced mechanical properties and also its conformity with FDA policies. The 316L stainless-steel filler likewise helps to improve the hardness of the material and also makes it much simpler to machine.
Applications of Stainless Steel Filled PTFE Tube
Stainless steel filled PTFE tube produced by us Ningbo Sunshine works extremely well for bushings, slide pads, gaskets, washers, shaft bearings, slide runners, chemical type water tank linings and electro-mechanical heat retaining material elements.
Advantages of Stainless Steel Filled PTFE Tube
The compound contains 50% Virgin PTFE and 50% 316L stainless steel helps effectiveness against deformation under load when compared with some other PTFE composites.
And it possesses outstanding potential to deal with low and high temperatures and can help dissipate static increase. The PTFE compound is proper to be utilized in food contact applications. It is highly machinable to be made into a myriad of parts, seals.
Stainless Steel Filled PTFE Tube Data Sheet
Properties
|
Test Methods
|
Typical Value
|
Test Unit
|
Specific Gravity
|
ASTM D792
|
3
|
g/cm3
|
Hardness shore D
|
ASTM D2240
|
66
|
shore D
|
Tensile strength
|
ASTM D4745
|
19.2
|
mpa
|
Elongation at break 23°C
|
ASTM D4745
|
240
|
%
|
Operating temp
|
-
|
-269 to 312
|
°C
|
