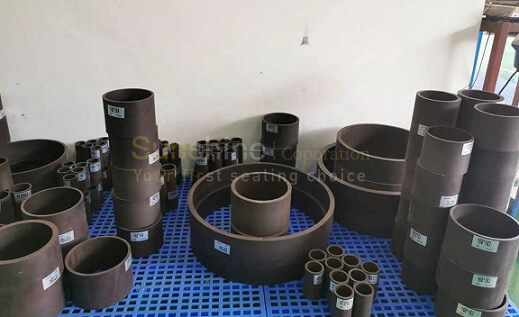

40% Bronze Filled PTFE Compound Tube
40% Bronze Filled PTFE Compound Tube is very good materials for hydraulic application areas, and we stocks large quantity PTFE compound materials with different sizes. You can get them with excellent quality in a little time period.
PDF DownLoad
Content
Style BF40 - PTFE and 40% Bronze powder
As being the seller and producer of 40% Bronze Filled PTFE Compound Tube, we can easily provide all range of sizes to fulfill your want with fastest shipment. Bronze is among the most well-known as well as typical metallic filler for PTFE. Bronze is an alloy of copper and tin, therefore it is infected by acids and bases. As well, bronze oxidizes through the sintering procedure, nevertheless this has no impact on the quality of the materials.Bronze is commonly used in higher levels for example 40% to help increase the thermal conductivity as well as reduce the deformation under load when bronze filled PTFE materials are exposed to load at excessive temperature ranges. 40% Bronze Filled PTFE Compound Tube materials hold the very good abrasion level of resistance and compressive strength.
Bronze filled PTFE materials are typically used for bearing and wear ring purposes. This Bronze filled PTFE materials often used in hydraulic solutions, in particular excellent as linear bearings, slides, gibs and guide ways. We also can make other PTFE compounds with other fillers.
Other Types of Filled PTFE Tube
Style BF60 - 60% Bronze with 40% PTFEStyle TF15 - 15% Carbon fiber with 85% PTFE
Style CF15 - 15% Carbon with 85% PTFE
Style CF25 - 25% Carbon with 75% PTFE
Style GF15 - 15% Glass fiber with 85% PTFE
Properties
• Particularly excellent wear components of any filled PTFE• Extremely hard-wearing material
• Wonderful deformation advantages
• Great thermal conductivity
• Electrically conductive
40% Bronze Filled PTFE Properties
|
Properties |
Test Methods |
Typical Value |
Test Unit |
| Density |
ASTM D795 |
3.2 |
g/cm3 |
| Hardness shore D | ASTM D2240 | 65 |
Sh.D |
|
Tensile strength |
ASTM D638 |
20 | Mpa |
| Elongation at break 23°C |
ASTM D638 |
230 |
% |
| Coefficent of dynamic friction | ASTM D1894 | 0.13 |
- |
|
Flamability |
UL 94 |
V-0 | - |
| Thermal conductivity 23°C | ASTM C177 | 0.55 | W/K.m |
| Water absorption | ASTM D570 | 0.03 |
% |
| Working temperature | - | -200 to 260 | °C |
The best way to Store and Handle Bronze PTFE
Style BF40 40% Bronze Filled PTFE Compound Tube might be stored for an extended period of time and also is particularly resistant against ageing and also weather conditions as much as ten years. Particular ageing testing carried out on sample open to aging and atmospheric circumstances, presented no changes in weight as well as volume level. In case of semi-finished goods, ahead of handling or before the machining, it is recommended to store the material for twenty four hours on the manufacturing area, preferable in the clean and dried up area for a temperature of below 25°C, if possible between 20 to 25°C. This is very essential when room temp is low, in these instances the material should really be conditioned around 72 hours in the manufacturing place in the recommended temperature variety.
