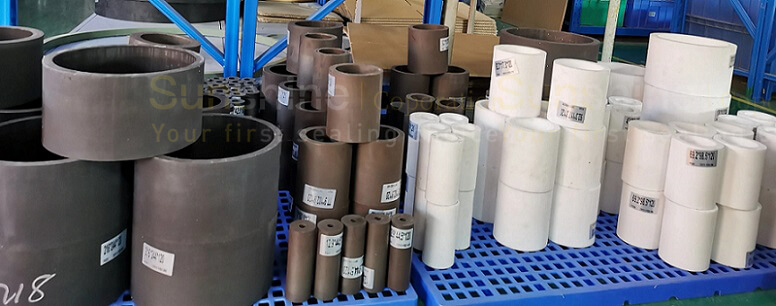

55% Bronze and 5% Mos2 Filled PTFE Tube
55% Bronze and 5% Mos2 Filled PTFE Tube has super quality for your machining PTFE parts. You can have the basic information from below content. Any inquires please contact us directly.
Content
Style BF55-M5: 55% Bronze + 5% Mos2 (Molybdenum DiSulfide) + 40% PTFE
55% Bronze and 5% Mos2 Filled PTFE Tube, this tube has 55% Bronze powder that really help they have more effective wear, creep resistance, and higher thermal conductivity than glass fiber with PTFE. The compound is readily machined, nonetheless has got poor chemical resistance when used in acids and also alkali. 55% Bronze and 5% Mos2 Filled PTFE Tube is useful in applications which usually go through large mechanical loads or high speed rubbing contacts the location where the bronze filler give the strength and conductivity to bring away excess, undesirable heat.Mos2 referred to as Molybdenum DiSulfide or Moly. And as the 5% MoS2 in it has a lubricating impact, that can help to supply superior anti-friction attributes to your material. MoS2 is typically added in small percentages in conjunction with different fillers including glass and also bronze.
And this kind of PTFE compound can be made in sheet, rod and tubes. And can be made according to your special need, any your need please let us know.
55% Bronze + 5% Mos2 Filled PTFE Tube data sheet
| Properties | Test Methods | Typical Value | Test Unit |
| Density | ASTM D795 | 3.8 | g/cm3 |
| Hardness Shore D | ASTM D2240 | 62 | Sh.D |
| Tensile Strength | ASTM D4745 | 14.5 | Mpa |
| Elongation at break 23°C | DIN D4745 | 140 | % |
| Flamability | UL 94 | V-0 | - |
| Working temperature | - | -60 to 200 | °C |
