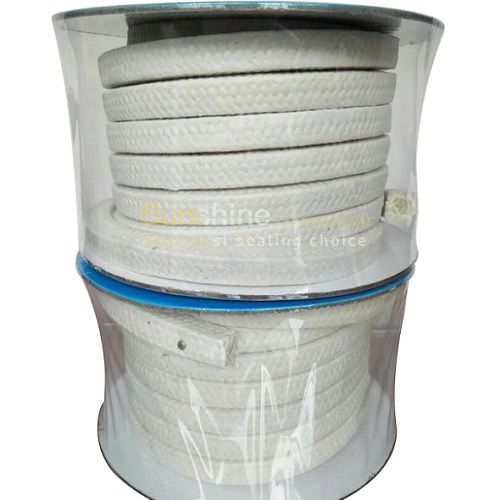

Meta-Aramid Nomex Fiber Packing with PTFE Dispersion
The Meta-Aramid Nomex Fiber Packing with PTFE Dispersion is not suitable for highly concentrated acids and caustics, alkali metals, oxygen.
Content
Meta-Aramid Nomex Fiber Packing with PTFE Dispersion - Style 3030
Meta-Aramid Nomex fiber packing with PTFE dispersion is braided from meta-aramid nomex yarn, each one strand yarn impregnated with PTFE-dispersion during the braiding operation, plus lubricated with an inert mineral essential oil for example silicone oil. The high technical toughness of the meta-aramid nomex fibre, combined with elaborate braiding operation, results in a smooth and flexible Meta-Aramid Nomex fiber packing with PTFE dispersion with great mechanical and chemical resistance. As a result of low coefficient of friction, shaft wear is largely prevented, actually at high shaft rates of speed. No abnormal heat build-up between the packing rings and the turning shaft; the packing runs cool, is still smooth as well as flexible, resulting in longer services life.Use of Meta-Aramid Nomex Fiber Packing with PTFE Dispersion
Meta-Aramid Nomex fiber packing with PTFE dispersion is recommended for all kinds of pumps, mixers, agitators, reactors, etc. for the chemical industry, pulp and paper, sewage plants, and many more.Meta-Aramid Nomex fiber packing with PTFE dispersion is also ideal for use with lots of media in a number of operations, which includes water, sewage, steam, solvents, chemicals, acids and caustics, along with standard service applications when a mechanically formidable packing is required.
Data Sheet
| Temperature | - | Pressure Limit | - |
| Min Temp | - 150 °C | Static | 210 bar |
| Max Temp |
280 °C |
Rotating | 35 bar |
| Density | 1.52 g/cm3 |
Reciprocating |
150 bar |
| Rotary Pump Speed | 17 m/s | Ph Value |
3 - 11 |
