Graphite PTFE with Aramid Fiber in Zebra Braided Packing

Graphite PTFE with Aramid Fiber in Zebra Braided Packing is made with aramid yarns and expanded graphitized PTFE, lubricated with silicone oil

Content

Graphite PTFE with Aramid Fiber in Zebra Braided Packing - Style 3030

Graphite PTFE with aramid fiber in zebra braided packing is made with aramid yarns and expanded graphitized PTFE, lubricated with silicone oil. Gland packing aramid specific for dynamic applications with abrasive fluids. The graphite PTFE with aramid fiber in zebra braided packing is suitable for centrifugal and reciprocating pumps, agitators and mixers operating with many industrial fluids

Advatages

Graphite PTFE with aramid fiber in zebra braided packing can even and reduced shaft surface wear, has excellent heat conductivity, it is recommended shaft surface hardness: HRC 45 and is safe and universal packing with abrasive media.

Main Applications

Graphite PTFE with aramid fiber in zebra braided packing is excellent at using for centrifugal pumps, mixer, kneader, agitators, filter and refiner. And it is suitable for chemical industry, pulp and paper industry, waste water technology.

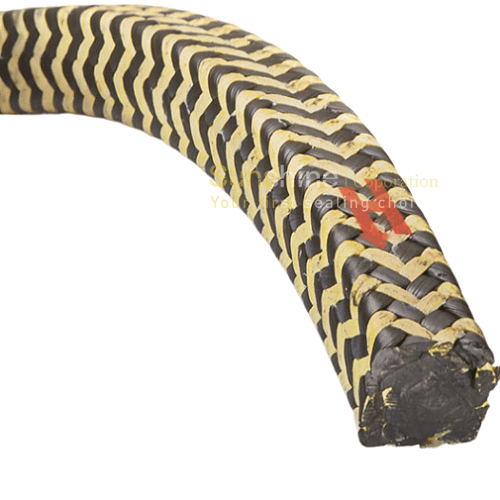

China Graphite PTFE with Aramid Fiber in Zebra Braided Packing

Data Sheet

Temperature	-	Pressure Limit	-
Min Temp	- 150 °C	Static	200 bar
Max Temp	280 °C	Rotating	30 bar
Density	1.5 g/cm3	Reciprocating	150 bar
Rotary Pump Speed	16 m/s	Ph Value	3 - 11
