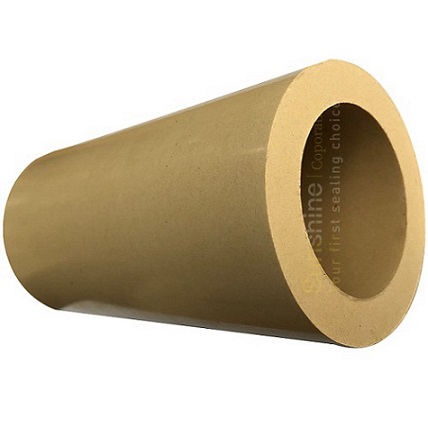

10% Ekonol Filled PTFE Tube
10%, 15%, 20%, 25% Ekonol filled PTFE tube can be supplied and made by us with Special excellent wear resistance. FDA approved grades available which can be used for food industry.
Content
Style 9005 - POB Filled PTFE Tube
10% Ekonol filled PTFE tube is 10% Ekonol polyester powder blended with 90% PTFE. Polyphenylester is so identified as POB or Ekonol material, is a thermally steady aromatic polyester. When blended with PTFE, it generates a composite material along with exceptional large temp as well as wear amount of resistance. Ekonol polyester will not likely wear mating stainless steel surfaces, rendering it beneficial to rotary purposes. Ekonol filled PTFE materials are also beneficial to food program, primarily suited to applications with very soft stainless steel products such as light weight aluminum. These features help to make Ekonol polyester an excellent filler for PTFE compounds to enhance working life of bearings, seals, rotors and linked components.
As opposed to glass fillers could be abrasive, Ekonol filled PTFE compound materials do not wear very soft steel surface areas. Moreover, Ekonol and PTFE blends avoid self-wear a lot better than other PTFE compositions, together with very good lubricity on molded parts. As well as based on several proportion of Ekonol filled in PFFE, you will discover three other key different types of POB Ekonol filled PTFE
Style 9006 - 15% Ekonol Filled PTFE
Style 9007 - 20% Ekonol Filled PTFE
Style 9008 - 25% Ekonol Filled PTFE
Applications
POB Ekonol filled PTFE composite tube material displays superb wear resistance in normal water, and also is mainly designed to create high-temperature and oil-free lubricated bearings, bearing padding, sliders, piston rings, gaskets, and sealing packings, especially in Bearings that run in water and water vapor; can be used for high-temperature valves, cock, guide rail, pump sealing materials, thrust rings, valve seats, bridge sliders, and electrical insulation parts for heat generating parts.
Data Sheet
Properties
|
Test Methods
|
Typical Value
|
Test Unit
|
Specific Gravity
|
ASTM D792
|
2.04
|
g/cm3
|
Hardness shore D
|
ISO 868
|
58
|
shore D
|
Tensile strength
|
ASTM D4745
|
22
|
mpa
|
Elongation at break
|
ASTM D4745
|
270
|
%
|
Operating temp
|
-
|
-200 to 260
|
°C
|
