Type F Nitrile Faced Phenolic Flange Insulation Gasket Kit

Type F Nitrile Faced Phenolic Flange Insulation Gasket Kit

Type F Nitrile Faced Phenolic Flange Insulation Gasket Kit from us - the manufacturer of quality Type F Nitrile Faced Phenolic Flange Insulation Gasket Kit

Content

What is Type F Nitrile Faced Phenolic Flange Insulation Gasket Kit?

Style NFIK 605 Type F nitrile faced phenolic flange insulation gasket kit is used for raised face RF flange. This gasket is comprised of a high-strength reinforced phenolic materials gasket compressed between 2 conformable Nitrile NBR layers. The type F Flange Insulation Gasket Kit is a version were the gasket is centered between the bolts. This gasket is suitable for use in raised-face flanges up to ANSI class 600 and is excellent for isolating flanges made of dissimilar metals or where prevention of flange face corrosion is desired.

The whole Kit includes phenolic and steel washers with mylar sleeves. And other types such as Type E and Type D flange insulation gasket kits we also can offer.

G10 with EPDM Ring Flange Insulation gasket kits


Application of Type F Phenolic Flange Insulation Gasket Kits

The type F flange insulation gasket kit makes sure the interruption of electrical continuity between adjacent flanges isolating each component, stopping galvanic or electrochemical corrosion process. In fact it prevents contact between two materials that having different electric potential, without interfering with the right tightening of flanges.

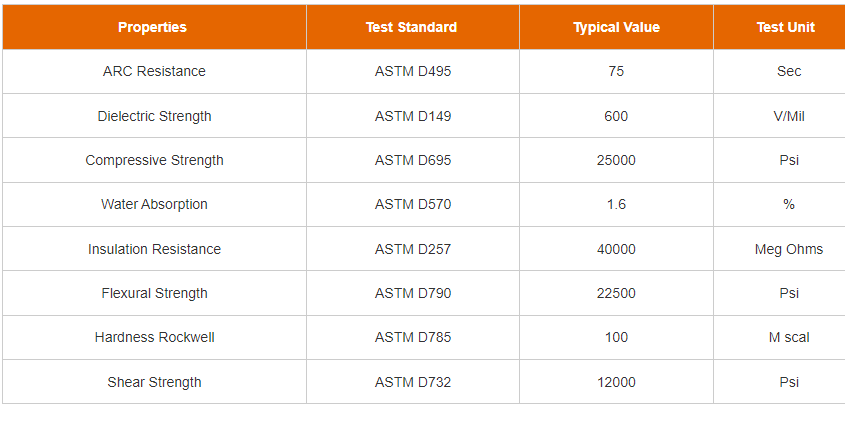

Neoprene or Nitrile Faced Phenolic Flange Insulation Gasket Kit

Neoprene or Nitrile Faced Phenolic Flange Insulation Gasket Kit
