Type D Phenolic Flange Insulation Gasket Kit

For Type D Phenolic Flange Insulation Gasket Kit, the main gasket material can be Plain phenolic or G10 material.

Content

Type D Phenolic Flange Insulation Gasket Kit - Style FIK 600-D

Type D phenolic flange insulation gasket kit is in fact an insulating ring joint gaskets created to physically fit the specific ring groove of Ring Type Joint flanges. The type D big central gasket is made from medium weave fabric strengthened phenolic or G10, in fact it is according to ASME B16.20 gasket dimensions. Type D phenolic flange insulation gasket kit come in the standard octagonal shapes. Oval Ring Type Joint gasket shapes can be sought after by unique need.

Type D phenolic flange insulation gasket kit is developed to match into the ring groove of RTJ flanges. And made to order gasket shape like BX type gasket with pressure ratings to 15000 PSI is available.

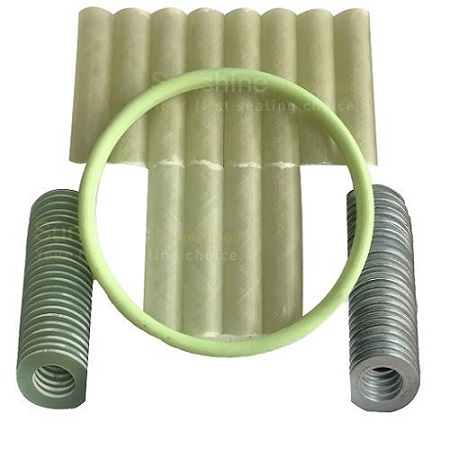

Type D G10 Flange Insulation Gasket Kit

Material Specifications for Type D Flange Insulation Gasket Kit

Plain Phenolic

Compressive Strength: 25 KSI
Dielectric Strength: 500 VPM
Max. Continuous Operating Temp: 105° C
Water Absorption: 1.6%
Tensile Strength: 20 KSI

NEMA grade G-10

NEMA grade G-10 Glass-Reinforced Epoxy (GRE) laminate – STANDARD
Compressive Strength: 65 KSI
Dielectric Strength: 750 - 800 VPM
Max. Continuous Operating Temp: 150° C
Water Absorption: .05%
Flexural Strength: 65 KSI
Tensile Strength: 50 KSI
Shear Strength: 22,000 lb.

NEMA grade G-11

NEMA grade G-11 Glass-Reinforced Epoxy (GRE) laminate material:
Compressive Strength: 50 KSI
Dielectric Strength: 500 VPM
Max. Continuous Operating Temp: 202° C
Water Absorption: .085%
Flexural Strength: 57 KSI
Tensile Strength: 41 KSI
Bond Strength: 2,200 lb.
Shear Strength: 21,200 lb.
