Type E Flange Insulation Gasket Kit

Type E Flange Insulation Gasket Kit This style kit contains a full- face gasket that has the same outside diameter as the flanges

Content

What is Type E Flange Insulation Gasket Kit?

Type E Flange Insulation Gasket Kit is often a full-faced gasket using the same outside size same as the flange as well as preciseness cut bolt holes. This particular structure facilitates right positioning of the gasket during setting up as well as foreign material prevented from shorting the flange isolation. Type E gaskets are available in plain face or Nitrile faced phenolic, in addition to a assortment of high temperature components just like G10, G11, G7 and other materials. Common thickness of 3.2 mm.
Type E Flange Insulation Gasket Kits

Suggested Installment Procedure for Flange Insulation Gasket kits:

• Check out that this assembly kits include the material given.
• Neat and examine pipe flange faces and utilize lubricant to all of threads.
• Setup the gasket and position the flanges into the bolt holes.
• Work with alignment pins into two diametrically opposing bolt holes whenever feasible to be sure appropriate positioning of flanges and gasket.
• Put insulation sleeves to the bolt holes, taking care to not ever use pressure, that may damage the sleeve material.
• Place the bolt with both insulating washers with the flanges, then the steel washer and nut.
• Tense up two diametrically opposite bolts to 30% to full torque.
• Remove and replace the two alignment pins with bolts and tighten up the remaining bolts to 30% of the total torque value.
• Tense up all bolts to 50%, then to 100% of final torque value.
• Mounting bolts ought to be of plenty of length to extend through the nut approximately 1/4″.

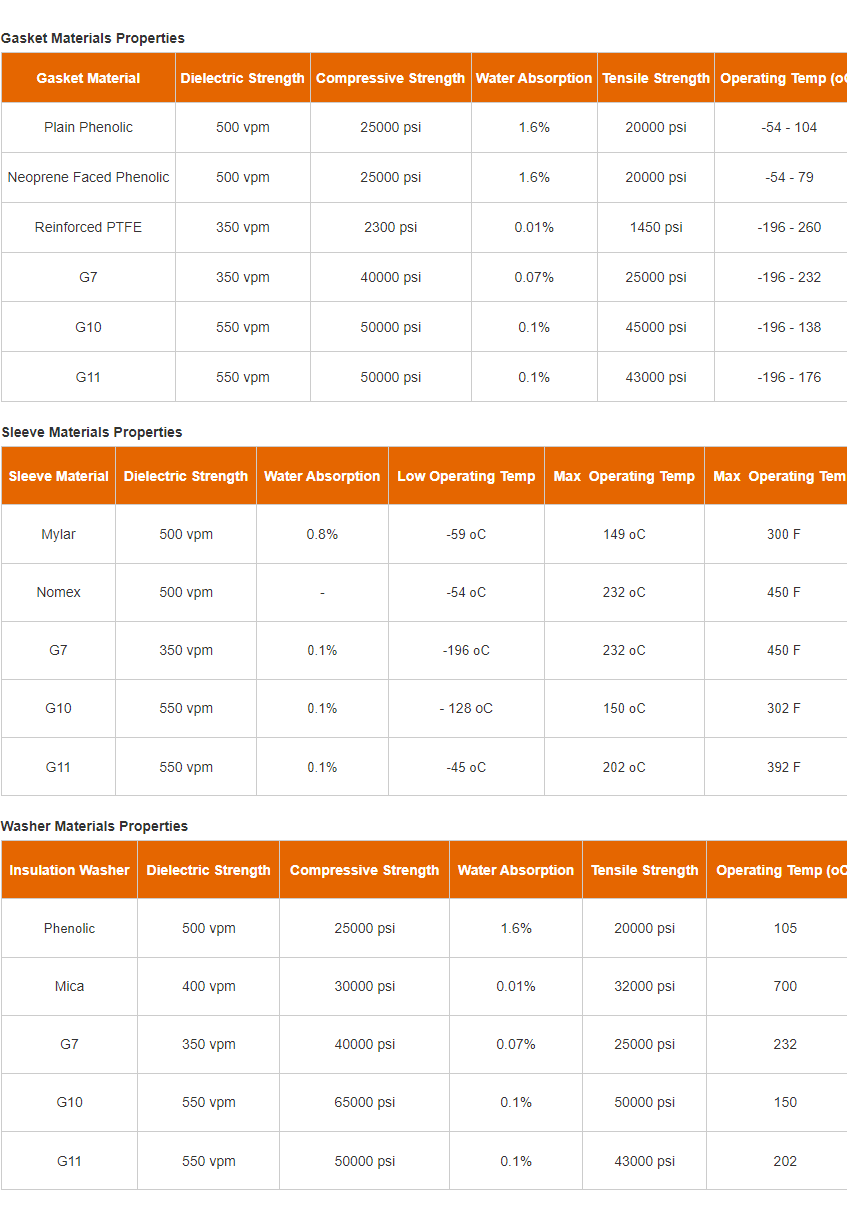

materials for Type E Flange Insulation Gasket Kit
