SS 316L V-shape Metallic Strip Tape for Spiral Wound Gasket

SS 316L V-shape Metallic Strip Tape for Spiral Wound Gasket

HS code for SS 316L V-shape metallic strip tape for spiral wound gasket and other type V-shape is 72193500.00

Content

Style VS101 - SS 316L V-shape Steel Strip Tape

SS 316L V-shape metallic strip tape for spiral wound gasket is needed for gasket production and also the steel metallic is V shape design. Spiral wound gasket is made of V-shaped or W-shaped metallic strip tape put together with very soft non-metallic filler for example Graphite, PTFE, Mica by spiral winding, as well as related the final end by spot welding.

AISI 316L quality stainless-steel, from time to time called A4 steel or marine standard steel, is actually the 2nd most typical austenitic stainless right after 304 stainless-steel. Its own main alloying ingredients just after iron, will be chromium between 16–18%, nickel 10–12% and molybdenum 2–3%, together with little portions of silicon below 1%, phosphorus and sulfur also present. Adding molybdenum supplies larger corrosion amount of resistance than 304. SS 316L quality is the small carbon version of 316 stainless. When cold worked, 316 can create high yield and tensile strengths much like Duplex stainless grades.

It can be common in chemical and also petrochemical market, in food producing, pharmaceutical devices, medical units, in potable water, wastewater treatment method, in marine purposes and architectural purposes near to the seashore or in urban places.

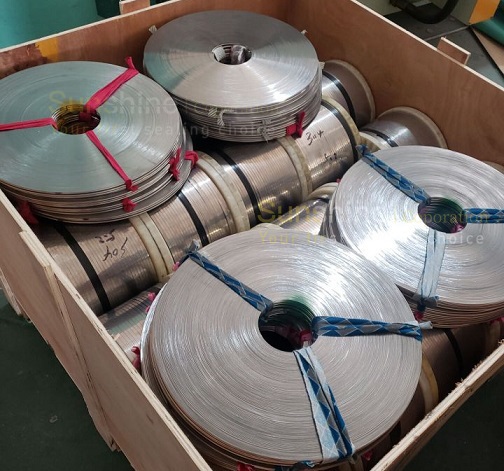

SS 316L V-shape Metallic Strip Tape for Spiral wound gaskets


Growth Grades

On the basis of 316, a lot of metal kinds have been established. For example, right after incorporating a small amount of titanium (Ti), SS 316Ti was developed. 316N was made just after adding a tiny bit of nitrogen (N), SS 317L was developed from adding nickel (Ni) and also molybdenum (Mo).

V-shape Tape Size

Thickness: 0.15 to 0.20 mm
Width: 2.5 mm to 10 mm

When you produce spiral wound gasket with 4.5 mm or 3.2 mm thickness, so the V-shape metal strip tape width you need will be: 4.8 to 5.3 mm width for 4.5 mm thickness spiral wound gasket, 3.6 to 4 mm width for 3.2 mm thickness spiral wound Gasket.

China SS 316L V-shape Steel Strip Tape
