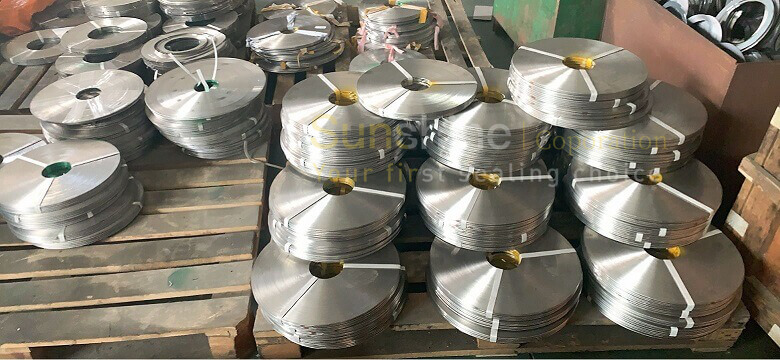

SS 304 V-shape Stainless Steel tape for Spiral Wound Gasket
Not only SS 304 V-shape stainless steel tape, but also SS 316L, SS316Ti, Monel 400, SS 321, SS 317L steel materials we can offer.
Content
Style VS100 - SS 304 V-shape Stainless Steel Strip Tape
SS 304 V-shape stainless steel tape for spiral wound gasket is used for gasket manufacturing and the steel metallic is V shape construction. Spiral wound gasket is constructed out of V-shaped or W-shaped metallic strip tape coupled with very soft non-metallic filler including Graphite, PTFE, Mica by spiral winding, and also linked the end by area welding.304 stainless steel is the most frequent stainless. This steel features both chromium between 18% and also 20%, and nickel between 8% and 10.5% as the major non-iron constituents. It is really an austenitic stainless-steel. It is a lesser amount of electrically as well as thermally conductive than carbon metal. It possesses a great bigger corrosion level of resistance than standard metallic plus is regularly used because the convenience in which it is created into several shapes. The ss 304 V-shape metallic tape is constructed from ss 304 tape, cut into appropriate flat width tape as well as then makes use of the steel strip shaping machine to shape this flat stainless tape be V-shape or W-shape. We are able to make about 1200 kgs 4.5 mm width V-shape metal strip tape on a daily basis, so that your any buy could be done by us in a very short period of time.
The other materials for making V-shape stainless steel strip tape can be SS 316L, SS 321, SS 317L, Monel 400, INCONEL 600, INCOLOY 825, Alloy 20, Titanium, HASTELLOY C 276.
SS 304 Corrosion Resistance
304 steel features superb amount of resistance to a number of atmospheric conditions and many corrosive media. It truly is susceptible to pitting as well as crevice rust in hot chloride situations as well as to stress corrosion cracking above about 60 °C. It really is viewed as resistant to pitting corrosion in water with as many as about 400 mg/L chlorides at ambient temperatures, lessening to about 150 mg/L at 60 °C.304 stainless-steel is usually very very sensitive at space temp to the thiosulfate anions produced by the oxidation of pyrite and also can undergo extreme pitting corrosion troubles when in close connection with sulfide-rich clay materials encountered with oxidation.
For more critical corrosion conditions, any time 304 stainless-steel is just too big sensitive to pitting or crevice corrosion by chlorides or typical corrosion in acidic applications, it is commonly changed by 316 steel.
What Sizes We can Make?
Thickness: 0.15 to 0.20 mmWidth: 2.5 mm to 10 mm
If you want to make spiral wound gasket in 4.5 mm or 3.2 mm, so the V-shape width you need will be: 4.8 to 5.3 mm width for 4.5 mm thickness SWG, 3.6 to 4 mm width for 3.2 mm thickness SWG Gasket.
V-shape Metal Materials
|
Steel Material |
Abbreviation |
Min temp (°C) |
Max Temp (°C) |
Guide ring color |
|
SS 304 |
304 |
-195 |
760 |
|
|
SS 316L |
316L |
-100 |
760 |
|
|
SS 317L |
317L |
-100 |
760 |
|
|
SS 321 |
321 | -195 | 760 | |
|
SS 347 |
347 |
-185 |
760 |
|
|
Alloy 20 |
A-20 |
-185 |
1090
|
|
|
Carbon Steel |
CS |
-40 |
540 |
|
|
HASTELLOY B2 |
HAST B |
-185 |
1090 |
|
|
HASTELLOY C 276 |
HAST C |
-185 |
1090 |
|
|
INCOLOY 800 |
IN 800 |
-100 |
1090 |
|
|
INCOLOY 825 |
IN 825 |
-100 |
1090 |
|
|
INCONEL 600 |
INC 600 |
-100 |
1090 |
|
|
INCONEL X750 |
INX |
-100 |
1090 |
|
|
MONEL 400 |
MON |
-130 |
820 |
|
|
NICKEL 200 |
NI |
-195 |
760 |
|
|
Titanium |
TI |
-195 |
1090 |
|
