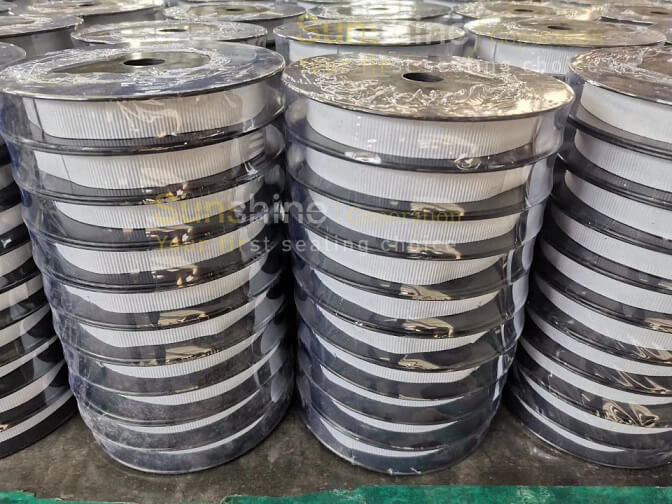

Crinkled Flexible Graphite Tape with Self-adhesive

Crinkled Flexible Graphite Tape with Self-adhesive

Buy crinkled flexible graphite tape with adhesive, corrugated graphite tape. Please contact us Ningbo Sunshine.

Content

Style CG2003 - Crinkled Graphite Tape

Crinkled flexible graphite tape with adhesive is manufactured out of high purity graphite comprising over 99% carbon with no fibers, binders or another additives. Crinkled flexible graphite tape is typically applied for a stuffing box packing for pumps and also valves, it really is furnished with a self-adhesive backing strip to help installment for a form-in-place gasket, thread sealant, or for facing jacketed.

Crinkled flexible graphite tape with adhesive insures a large array of sealing applications. It handles most chemicals in the 0 - 14 pH range at cryogenic as well as elevated temperature conditions, as well as from vacuum to severe pressures. It can be used extensively in the chemical, automotive and pump and valve industries.

Applications

The corrugated crinkled graphite tape is great at using in high temperature applications as well as high pressure applications. It has very low leakage rates as well as decent heat dissipation. It can be used as the materials for gasket facings for Jacketed, corrugated and grooved camprofile gaskets. It is excellent for both rotary pumps and valves, good Seals for slight shaft deflection. It had high flexibility, very good wear resistant.

Operating range and Properties

Static pressure = 130 bar, and for working temperature, The bare minimum Temperatures: -200°C. Highest possible Temp in Air: 450°C. In Steam: 650°C. In Inert media: 2600°C. Chemical resistance: pH = 0 to 14. Carbon Content: 98% Min. Leachable Chlorides: 50 ppm max. Total Sulfur: 1000 ppm max.


China Crinkled Flexible Graphite Tape with Self-adhesive
