PTFE Molded Sheet
Here you will know more about PTFE Molded Gasket sheet. And the fillers such as Graphite, carbon, fiberglass, bronze powder, ekonel, Polyimide P84, Barium Sulfate Mos2 and silica for PTFE Molded sheet.
Content

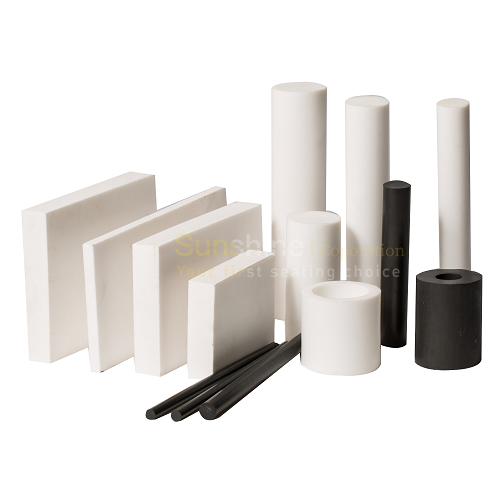

PTFE Molded Sheet - Style SULON 2102
PTFE Molded sheets provide a low friction and non-stick surface suitable for using in high temperature and high dielectric applications. By using our advanced compression molding process, we can make PTFE molded sheets with a very high quality surface finish, free from stress cracks and close to the dimension of the end product, maximizing reducing cost and reducing material loss. PTFE Molded sheets are available in a wide variety of materials such as virgin PTFE and modified filled PTFE resins.PTFE has very good chemical resistance, it is insoluble in all chemicals with the exception of a few exotic strong base chemicals, and Its electrical properties are excellent. Although it has high impact strength, its resistance to wear, tensile strength and creep resistance are lower in comparison to other engineering plastics. And the mechanical properties of PTFE Molded sheet can be improved by adding fillers such as glass fiber, carbon, graphite, molybdenum disulfide, silica, and bronze.
Ningbo Sunshine as the one China leading Manufacturer and supplier of PTFE Molded Sheet with competitive price to the world market, in order to offer a fast and efficient service to our customers, we stock a wide range of PTFE molded and skived sheets in different thickness and dimensions. The thickness of Virgin PTFE Molded Sheet we produce can be from 2 mm to 100 mm and the width from 200 mm to 2400 mm.
How to Glue and bond the PTFE Sheet
Here all over again, the low friction and slipperiness of PTFE cause it to be a challenge to be glued or bonded. PTFE sheet must have surface area prep work in advance of bonding, usually by etching with using a solution of sodium and naphthalene in tetrahydrofuran. And now adhesive providers currently have created exclusive primers which help it become possible for the PTFE Sheet surface area to be primed and then can be accepted an sticky. As soon as the surface of the PTFE Sheet is ready, a number of adhesives can be used which includes epoxies, polyurethanes and acrylics. Famous companies such as Loctite® and 3M® have now developed a unique acrylic based adhesive that can bond directly to PTFE without the need for preparation, other than a preliminary wipe with a washing solvent.The Most Common Filler for PTFE Molded Sheet:
Style SULON 2200 - PTFE Gasket with Silica FillerStyle SULON 2202 - PTFE Gasket with Glass filler
Style SULON 2204 - PTFE Gasket with Glass Aluminosilicate Microspheres
Style SULON 2210 - PTFE Gasket with Barium Sulfate Filler
Style SULON 2230 - PTFE Gasket with Graphite Filler
Style SULON 2240- PTFE Gasket Sheet with Bronze Powder
Style SULON 2300 - PTFE Gasket Sheet with Ekonol
Style SULON 2302 - PTFE Gasket Sheet with 15% Graphite
PTFE Molded Sheet Dimension
| Item Name | Thickness (mm) |
PTFE Sheet Size |
PTFE Sheet Tolerance |
| PTFE Moled Sheet | 3 - 100 |
500 x 500 |
± 0.3 - 3 mm |
| PTFE Moled Sheet |
3 - 100 |
600 x 600 |
± 0.3 - 3 mm |
|
PTFE Moled Sheet |
3 - 100 |
1000 x 1000 |
± 0.3 - 3 mm |
| PTFE Moled Sheet |
3 - 100 |
1200 x 1200 |
± 0.3 - 3 mm |
|
PTFE Moled Sheet |
3 - 40 |
1500 x 1500 |
± 0.3 - 3 mm |
| PTFE Moled Sheet |
3-50 |
2000 x 1000 |
± 0.3 - 3 mm |
| PTFE Moled Sheet |
3-50 |
2000 x 2000 |
± 0.3 - 3 mm |
| PTFE Moled Sheet |
3-50 |
2400 x 1200 |
± 0.3 - 3 mm |
Note: Other thickness or length can be custom made.
