PTFE Gasket Sheet with 25% Glass Fiber Filled

PTFE Gasket Sheet with 25% Glass Fiber Filled

SULON 2209 PTFE gasket sheet with 25% glass fiber filled is a high molecular weight polymer and one of the most versatile plastics known to man

Content

PTFE Gasket Sheet with 25% Glass Fiber Filled - SULON 2209

SULON 2209 PTFE gasket sheet with 25% glass fiber filled is a high molecular weight polymer and one of the most versatile plastics known to man. This PTFE sheet is filled with 25% glass fibers by weight. The filled material significantly reduces cold flow and creep and increases wear resistance compared to unfilled PTFE sheet. It can handle a very broad range of chemicals with the exception of molten alkali metals and elemental fluorine. This style is suitable for service at temperatures from the cryogenic range up to 500°F.

Adding glass to PTFE sheet makes it stronger and more durable, as well as reducing flexibility and likelihood of creep. 25% glass filled PTFE sheet can operate at the same temperature range as virgin PTFE and is similarly chemically inert. Glass has little effect on most of PTFE's electrical or chemical properties. It is resistant to acids and oxidation, but alkali can attack it.

Glass in the form of short glass fibers is usually filled in quantities of 15% to 25%. Increasing the Glass filler content results in an increase in durability and compressive strength. The offered Glass filled PTFE bushings contain 25% clean milled fibres and 75% PTFE virgin and are available in white-grey colour with a hardness of 60 shore D.

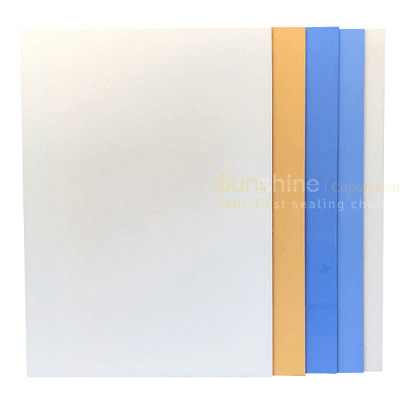

PTFE Gasket sheet with 25% Glass fiber fillers


The Advantages and Application of Glass Fiber Filled PTFE Sheets

PTFE gasket sheet with 25% glass fiber filler in the sheet has an increased compressive strength and great properties regarding creep resistance (deformation under load). Glass fillers can be abrasive, so it is advised to pay attention to hardware matching.

Optionally, glass filled PTFE can be inert gas sintered. This further reduces the material's tendency to creep as well as its porosity. 25% Glass fiber filled PTFE sheets are more abrasive than Virgin PTFE, and it has better mechanical properties than unfilled PTFE meaning that it can be abrasive to adjacent surfaces.

PTFE gasket sheet with 25% glass fiber filled is primarily created into valve seats, gaskets, pump housings, filter housings, shaft seals, slide runners, pump and instrument components, electric powered insulators, gaskets, seals, washers and shaft bearings that work at low pressure and velocity values.


Data sheet for 25% Glass fiber filled PTFE Sheet
