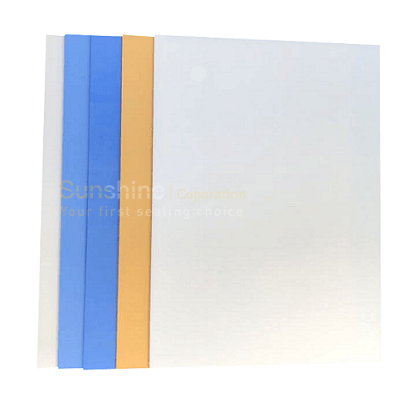

PTFE Gasket Sheet with Glass Aluminosilicate Microspheres Filler

PTFE gasket sheet with glass aluminosilicate microspheres filler can be supllied 1500mm x 1500mm width and length, and in the following thicknesses: 1.5mm, 2mm, 3mm, 4.8mm, 6.4mm

PTFE Gasket Sheet with Glass Aluminosilicate Microspheres Filler - SULON 2204

SULON 2204 PTFE gasket sheet with glass aluminosilicate microspheres filler features elevated compressibility for minimal bolt loads and also improved upon overall flexibility over standard graphite sheets, and also it is well suited for extreme chemical programs. The item suits FDA conformance for services within food and pharmaceutical drug purposes. PTFE gasket sheet with glass aluminosilicate microspheres filler would be the chosen product for fragile flanges, glass lined equipment or other applications that demand better compressibility. The PTFE gasket sheet material is PTFE compound that contains hollow glass microspheres and blue colored in color.

PTFE gasket sheet with glass aluminosilicate microspheres filler ordinary thickness is 1.5 mm and 3 mm, and this type of PTFE gasket sheets is excellent for dealing with as well as cutting. And our SULON 2200 is equal to Garlock GYLON® Style 3504, Sigma 500, Teadit TF1570 filled PTFE gasket sheets.

Advantages of PTFE Gasket Sheet with Glass Aluminosilicate Microspheres Filler

For PTFE gasket sheet with glass aluminosilicate microspheres filler, Its actual key benefits consist of: resists a variety of chemicals, very compressible with superb bolt-load maintenance, improved upon performance over traditional PTFE, fantastic dimensional security, and resists wear as well as abrasion. It is blue in color.

Application of PTFE Gasket Sheet with Glass Aluminosilicate Microspheres Filler

SULON 2204 PTFE gasket sheet with glass aluminosilicate microspheres filler can be used several acids and some caustics, hydrocarbons, chemicals, water, refrigerants, cryogenics, peroxide, acetic acids, pharmaceutical clean pipelines, glass coating flanges, uneven flanges, heat exchangers.

Physical Properties

Properties	Testing Method	Sulon 2204	Sulon 2200	Sulon 2210
Sealability (ml/h)	ASTM F 37A	0.12	0.19	0.04
Creep Relaxation (%)	ASTM F 38	22	17	23
Compressibility (%)	ASTM F 36	29	13	9
Recovery Min. (%)	ASTM F 36	34	40	40
Tensile Strength (MPa)	ASTM F 38	15	13	13

Operating Limitations

Minimum Temp: -260°C
Maximum Temp: 260°C
Maximum Pressure: 8.5 MPa
