Lens Ring Type Joint Gasket
Here will tell the dimension of the lens ring type joint gasket and how it is made and installed. we can offer you the all global standard Lens Ring Type Joint Gasket, quickest delivery.
Lens Ring Type Joint Gaskets - Style LRTJ 305
A Lens Ring Type Joint Gasket is usually a line contact seal for use in high pressure piping devices as well as in pressure vessel heads. This lens cross section is often a spherical gasket surface area and requires specific machining on the flanges. In obtaining lens gaskets, complete drawings and product technical specs need to be supplied.With certain applications, the specifications of the high integrity metallic seal has usually lead to the selection of the actual lens ring type joint gasket, rather than much more generally known ring type joint alternative. The lens ring type joint gasket is covered solely by the DIN 2696 specifications. Having said that, ASME B16.5 and other flange styles might be customized to just accept the lens ring type joint gasket. The lens ring type joint gasket provides for a metallic gasket design incorporating spherical seating faces made to accommodate specifically mating flange recesses, offering the end user with a great sincerity, high-pressure and temperatures metallic to metal seal. Like all metal gaskets, the Lens Ring material ought to be given much softer when compared to the flange material, thereby assuring utilized compressive stress causes the elastic or plastic-type deformation of the lens ring type joint gasket and not to the particular flange sealing facial area. The circulation of high compressive loads brings about the spread out from the gasket facings, making sure over stressing of the gasket is stopped.
In accordance with DIN 2696 common components are restricted to a range of specified carbon steels and stainless levels, even though alternative grades are offered upon require. Ningbo Sunshine needs a detailed drawing be supplied when ordering non regular lens ring type joint gasket.
Lens Ring Type Joint Gasket Materials
We use large range of metal materials to produce Lens ring type joint gasket, the materials can be Soft Iron, Low C/S, ss410, ss304, ss316, ss347, F5, F11, Copper, Aluminum, Inconel 600, Inconel 625, Incoloy 800, Incoloy 825, Monel 400, Titanium, Nikel 200, Hastelloy C276, Zirconium702Lens Ring Type Joint Gasket Application

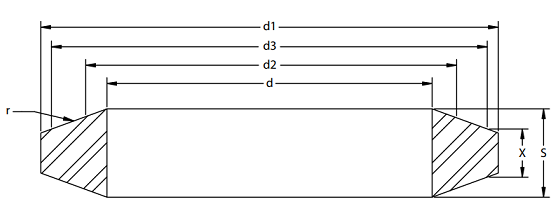

Lens Ring Type Joint Gasket is primarily used in the oil, gas, petrochemical and offshore industries. They are also commonly used on valves, pipe-work assemblies and vessel joints and are used to seal flanged connections subject to high pressures and temperatures.Lens Ring Type Joint Gasket Dimension
DN
d
D1
a
r
d3
x
min.
max.
max
d2
Nominal Pressure PN 64 - 400
10
10
14
21
7
17.1
25
18
5.7
15
14
18
28
8.5
22
32
27
6
25
20
29
43
11
34
50
39
6
40
34
43
62
14
48
70
55
8
50
46
55
78
16
60
88
68
9
65
62
70
102
20
76.6
112
85
13
80
72
82
116
22
88.2
129
97
13
100
94
108
143
26
116
170
127
15
125
116
135
180
29
149
218
157
22
150
139
158
210
33
171
250
183
26
Nominal Pressure PN 64 - 100
175
176
183
243
31
202.5
296
218
28
200
198
206
276
35
225
329
243
27
250
246
257
332
37
277.7
406
298
25
300
295
305
385
40
323.5
473
345
26
350
330
348
425
41
368
538
394
23
400
385
395
475
42
417.2
610
445
24
Nominal Pressure PN 160 - 400
175
162
177
243
37
202.5
296
218
21
200
183
200
276
40
225
329
243
25
250
230
246
332
46
277.7
406
298
25
300
278
285
385
50
323.5
473
345
30
