60% Bronze Powder Filled PTFE TEFLON Sheet

60% Bronze Powder Filled PTFE TEFLON Sheet

60% bronze powder filled PTFE TEFLON Sheet is the most popular PTFE compound which has 60% bronze mixed with 40% PTFE, it is dark brown in color

Content


60% Bronze Powder Filled PTFE TEFLON Sheet - SULON 2240

60% bronze powder filled PTFE TEFLON Sheet is the most popular PTFE compound which has 60% bronze mixed with 40% PTFE, it is dark brown in color. 60% Bronze Powder Filled PTFE Moulded sheet  has excellent wears, creep resistance, and higher thermal conductivity than glass fiber with PTFE. PTFE materials often have defects such as non-wear resistance, poor mechanical properties, and easy creep. Fillers need to be added to improve their performance. And adding a certain amount of tin bronze filling is a common method. 60% bronze powder filled PTFE TEFLON Sheet can greatly improve the thermal conductivity, wear resistance and pressure resistance of PTFE. Adding tin bronze powder will increase the bearing capacity of the composite material; increase the friction coefficient; reduce the wear loss of the composite material, that is, increase the wear resistance; improve the thermal conductivity of the product, and can be made into plates, rods, Tubes and other special-shaped parts. So what are the effects of the particle size, shape and quality performance of the bronze copper powder, as well as the proportion of the added bronze copper powder, and the operation method on the filled products?

Compared with graphite added to PTFE, the hardness of copper powder added to PTFE is relatively harder, but the wear resistance of graphite added is better than copper powder added, and the friction coefficient of the composite material added with graphite is also Better than copper powder filled with PTFE. The smaller the particle size of the copper powder, the tensile strength and elongation will increase, and the hardness or compression will decrease slightly as the particle size becomes smaller. The larger the particle size of the copper powder, the worse the wear resistance of the composite product. In addition, the irregular particle size copper powder filled PTFE products have better mechanical properties, while the round particle size bronze copper powder has relatively better Wear resistance. increasing the proportion of filled copper powder in the composite material will reduce the tensile strength and elongation of the product, but its hardness and compression resistance will increase, and the overall proportion will also increase. Bronze copper powder itself is a kind of soft metal, it is not easy to damage the mating part during friction, and the heat dissipation effect is better and it is more suitable for the working environment where friction generates heat.

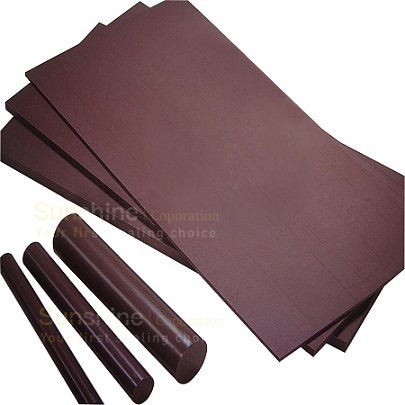

60% Bronze Powder Filled PTFE TEFLON Sheet


The Best Pecentage of Bronze Should Be Added?

So when we make copper powder reinforced PTFE products, what proportion of bronze copper powder should we choose to add? The PTFE resin with tin bronze powder added according to a certain ratio is mixed at a high speed to become a uniform mixed powder, and then the mixture is weighed according to the calculated weight of the part, and added to the mold. In this process, we Processing is usually performed manually. Adding powder to the mold may cause vibration and agitation of the powder. Because the specific gravity of tin bronze powder is several times higher than that of PTFE resin, the operation may make the mixing evenly. The copper powder in the PTFE copper powder filling material sinks, resulting in a variegated filling product after sintering. Therefore, when processing copper powder filled PTFE products, handle it with care and handle it as much as possible. Filled products with lower content are more difficult to control in terms of quality. As the amount of copper powder increases, this situation will be improved accordingly, so it is usually selected to add copper powder content of more than 40%. Moreover, according to our experimental test, the PTFE filled with 40% bronze copper powder content, the copper powder filled PTFE parts have better performance, moderate wear resistance, and better mechanical properties, and the bronze copper powder content is 60% , The wear resistance of its parts is better. Of course, when we make copper powder-reinforced tetrafluoroethylene materials, we also need to select the amount of our own or add other fillers such as carbon fiber, glass fiber, etc. for mixed use according to the use requirements.

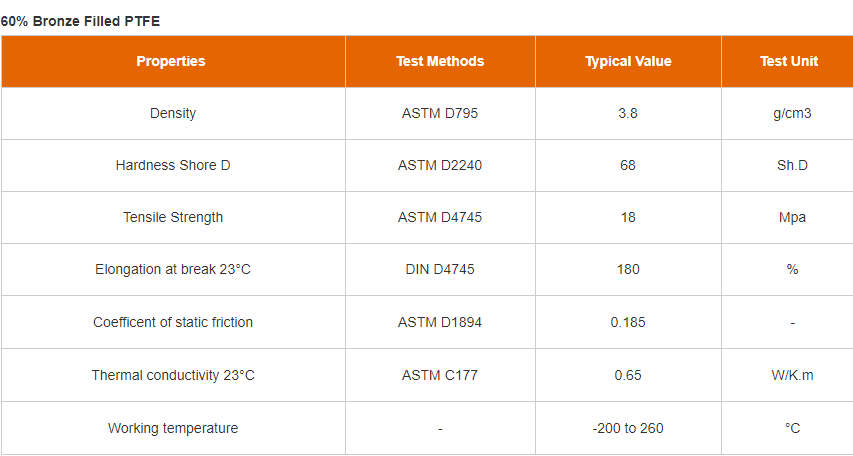

China 60% Bronze Powder Filled PTFE TEFLON Sheets
