Vermiculite 835 Spiral Wound Gasket

Vermiculite 835 Spiral Wound Gasket

Vermiculite 835 Spiral Wound Gasket as an advanced style of spiral wound gasket, can be used for high temperatures and aggressive chemical media. And we can offer you the all global standard spiral wound gaskets, quickest delivery.

PDF DownLoad

Content

Vermiculite 835 Spiral Wound Gasket - Style SN 500 - T835

Vermiculite 835 Spiral Wound Gasket can function in high temperature conditions as much as 1800 F, Sunshine Vermiculite 835 is usually a important service gasket designed for use in applications including high temperatures and aggressive chemical media. It is made up of a spirally wound sealing element which is composed of a metal winding wire along with a vermiculite 835 primarily based filler material.

The gasket can be supplied with form of just inner ring, both inner and outer rings, or just with outer ring. The spiral structure provides outstanding sealing performance and offers significant levels of gasket resilience.

And our Vermiculite 835 Spiral Wound Gasket is equal to Thermiculite® 835 Spiral wound gasket made by Flexitallic USA

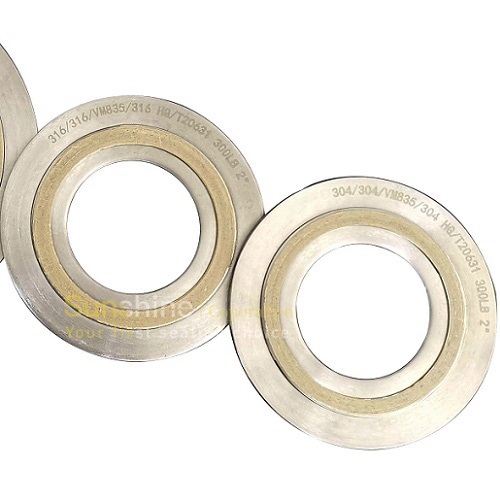

Vermiculite 835 Spiral Wound Gasket


Appliable Service

Vermiculite 835 Spiral Wound Gaskeare perfect for utilization in a wide selection of sealing applications. They are capable of effecting a very high sincerity seal in the most challenging conditions and are generally particularly fitted to applications relating to extremes of thermal or mechanicalcycling. Regular applications involve superheated steam, robust oxidising mass media and high temperature service. Metal factors, winding strip and rings, is often preferred to accomodate unique application.

Maximum recommended temperature: 980 oC. Maximum recommended pressure: ASME B16.5 class 2500

Features

• Perfect solution to extend the life of the gasket where graphite fillers are oxidized
• Can be used in place of some double jacketed gaskets in heat exchangers
• Excellent sealing characterists in a high temperature gasket
• Less expensive than most custom metal gaskets

Construction Style

• From 15 mm up to 2500 mm in diameter
• Manufactured in accordance to relevent standards to suit the following flange designations: ASME B16.5, BS 1560, BS 10, ASME B16.47 "B", ASME B16.47 "A", BS 4504, DIN, JIS
• Available in non-round structure - rectangular, triangular, oval, oblong, etc
• Gasket styles can be: R, RIR, CG, CGI

Materials Selected:

• Windings available in: 304 SS, 316L SS, 321 SS, 347 SS, Inconel 600, Incoloy 800/825, Inconel X-750, Monel 400
• Filler made from Thermiculite 835 can operate in up to 1800 degrees F, even in oxidizing environments
• For cyclical applications - Heat treated Inconel X-750 windings
