Stainless Steel Wire Mesh Reinforced Graphite Die Formed Ring - LPK 500R
Stainless steel wire mesh reinforced graphite die formed rings have the ability to provide a leak-free seal for high performance valve applications, with their excellent chemical resistance and the ability to withstand most media in the oil and gas industry. Working alongside our Suppliers we are able to offer a wide range of graphite grades including oxidation resistance, High purity graphite and corrosion inhibited grades to suit a wide range of applications can be supplied with metal end caps
Typical Applications
Stainless steel wire mesh reinforced graphite die formed rings used for valves and rotary equipment handling virtually any media, high temperature steam, heat transfer media, petroleum products, demineralised water, inorganic and organic acids and alkalis, hot waxes and oils
Main features
Stainless steel wire mesh reinforced graphite die formed rings have outstanding sealing performance over long adjustment-free periods, excellent chemical resistance and very wide temperature range
Valve Stem Duties

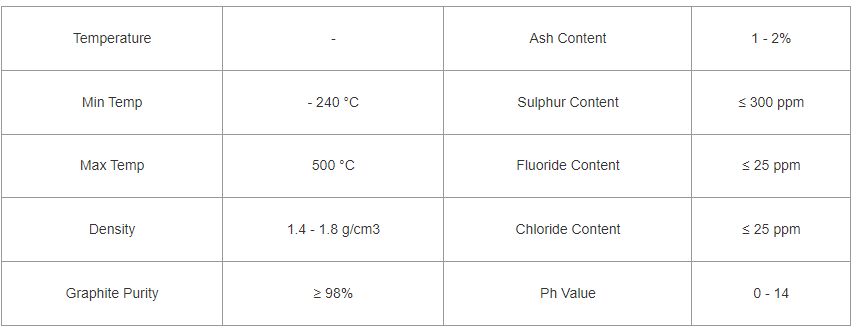

Maximum Operating Temperature: Steam : +650⁰C, Oxidising : +500⁰C, Non-Oxidising : +1000⁰C Minimum Operating Temperature -200⁰C Maximum system Pressure : 250 bar
