Spiral Wound Gasket Metal Ring Bending Machine

Spiral Wound Gasket Metal Ring Bending Machine

With 20+ years' experience of producing Spiral Wound Gasket Metal Ring Bending Machine, our ring bending machines has good condition & long-time working life

Content

Spiral Wound Gasket Metal Ring Bending Machine - SWR08

Spiral wound gasket metal ring bending machine is needed for making spiral wound gasket Inner ring and outer ring, the spiral wound gasket ring width scale is below 40 mm. Ring bending machine is designed to create rings in little number. About three rollers are all driving roller. All rings of different sizes will be accomplished in 1 time and work continually. Providing metallic strip into driving roller and alter appropriate posture, the machine will produce rings according to ID and OD of rings.

Ring Thickness: 2 mm, 3 mm, 4 mm
Ring Width: 6mm to 40 mm.

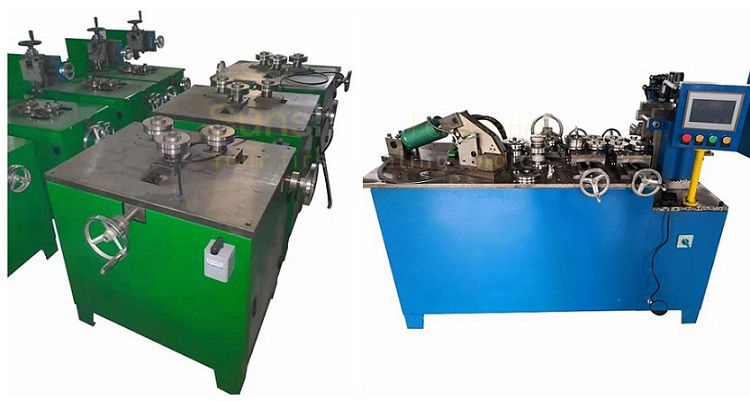

Spiral Wound Gasket Metal Ring Bending Machines


Technical Specification

Description Value Unite
Operation Type
-
Bending ring thickness 2, 3, 4 mm
Min inner diameter of ring Φ 200 mm
Max outer diameter of ring Φ 4000
mm
Tolerance of gasket +/- 0.2
mm
Total Power 2.2 kw
Power voltage 220/380 as need V
Net weight Max 270 kgs
Machine dimension 98*68*91 cm
