Automatic Ring Bending Machine For Spiral Wound Gasket Ring
Automatic Ring Bending Machine For Spiral Wound Gasket Ring, the machine has good condition & long-time working life
Content

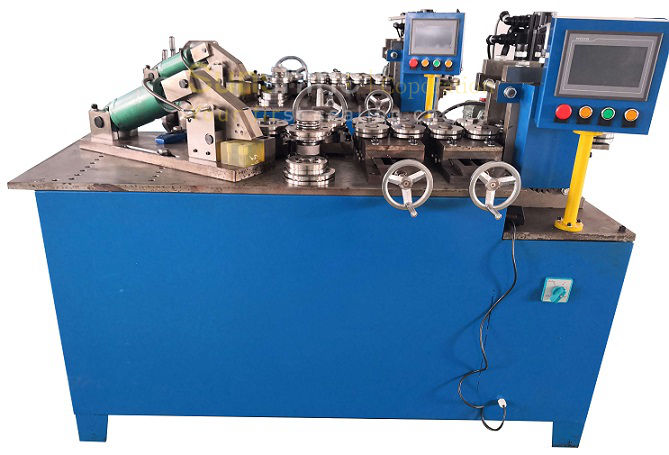

Automatic Ring Bending Machine for spiral wound gasket ring - SWR09
Automatic ring bending machine for spiral wound gasket ring is used for producing φ150 to φ3000 mm diameter of spiral wound gasket metal rings, and the metal ring width is from 6 mm to 50 mm. The automatic ring bending machine is very easy to operate, it is operated completely by PLC and touch screen, the implementation of digital input parameters, just put the size numbers in the Touch screen, the right gasket metal ring finished out, and it is with automatic shear cutting system. So the machine has high pass rate, fast producing processing speed.Ring thickness: 2 mm, 3 mm and 4 mm.
Technical Specification
| Description | Value | Unite |
| Operation Type | Automatic | - |
| Bending ring thickness | 2, 3, 4 | mm |
| Min inner diameter of ring | Φ 150 | mm |
| Max outer diameter of ring |
Φ 3000 |
mm |
| Tolerance of gasket |
+/- 0.25 |
mm |
| Total Power | 4 | kw |
| Power voltage | 220/380 as need | V |
| Net weight Max | 1250 | kgs |
| Machine dimension | 200*95*100 | cm |
