Silicone Rubber Gasket

What is Silicone Rubber Gasket?

Silicone rubber gasket is made of high quality silicone compound materials which offer good resistance to corrosion, water, ozone, and UV as well as superior performance in high and low-temperature environments. This durable, flexible, and temperature-resistant silicone rubber gasket is used for a wide variety of applications within aviation, construction, and other industries to provide a solution to fluid leakage.

Why We Use Silicone Rubber Gaskets?

The reasons why we use silicone rubber gasket is beacause of silicone rubber gasket is known for their versatility and temperature stability. Solid silicone rubber gaskets are ideal for creating a seal around metal surfaces, and silicone rubber gasket provides environmental sealing, offers excellent temperature stability, has good dielectric properties, maintains their flexibility at low temperatures, and it can withstand high temperatures

Silicone is highly compressible and remains flexible at low temperatures. It will not shrink over its lifetime due to temperature fluctuations and is not affected by UV rays or ozone. Silicone rubber gaskets also offer optimal waterproofing and are resistant to a wide range of substances.

Silicone Rubber Gasket Applications

Silicone rubber gaskets are used in medical, electronic, military, food processing, and transportation-related applications. Because of silicone rubber’s temperature stability, silicone rubber gaskets are great for high-temperature and low-temperature applications.

The Color of Silicone Rubber Gasket?

The silicone rubber gasket can be in white, translucent, red, blue and yellow color.

What is the Difference between Silicone and Fluorosilicone?

Like silicone, fluorosilicone rubber is a long-lasting elastomer that is stable and compression set resistant across temperature extremes, but unlike silicone, fluorosilicone contains trifluoropropyl groups that enhance its chemical resistance to non-polar solvents, fuels, oils, acids, and alkaline chemicals.

The Methods for Producing Silicone Rubber Gasket?

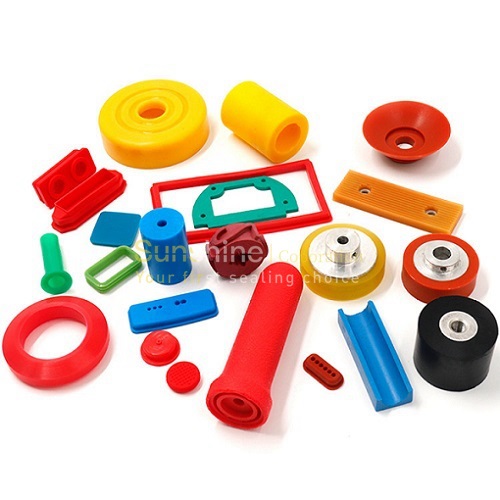

1. Molded Silicone Rubber Gasket

Molded silicone rubber gasket is an economic method to produce silicone rubber gasket, it is the best way to save the materials usage, and it will make the silicone rubber gasket in an accurate dimension size. But as this method need make a mould tool, so its first time production will need a longer time.

2. Die-cut Silicone Rubber Gasket

Die-cutting is ideal for small to large production runs of silicone rubber gaskets. It offers exact precision at affordable prices and can be custom-made to meet a range of application requirements.

3. CNC Machine Cutting Silicone Rubber Gasket

CNC machine cutting is the quickest way to produce large quanties of silicone rubber gasket.

4. Hand-cutting Silicone Rubber Gasket

Hand-cutting is an ideal method of creating small specialized batches of silicone rubber gaskets. It allows manufacturers to create a highly customized gasket for specialty applications.

Silicone Rubber Gaskets Data Sheet

Silicone compound	Hardness shore A	Rubber Color	Temp rang (°C)	Tensile strength (mpa)	Elongation at break (%)
S104	40	White	-60 to 200	7.2	510
S105	50	Red	-60 to 205	7.3	405
S106	60	White	-60 to 200	7.1	400
S107	70	Red	-62 to 200	7.5	350
