EPDM Rubber Gasket
EPDM rubber gasket has excellent resistance to ozone,UV sunlight - great for outdoor applications. Long service life
Content
What is EPDM Rubber Gasket?
EPDM rubber gasket is a gasket made of high quality EPDM raw materials used in many applications, EPDM rubber gasket is most commonly used in the automotive and construction industries for various seals due to its excellent resistance to environmental factors such as Ozone, UV and general weathering. EPDM rubber gasket resists animal and vegetable oils, steam, water and oxygenated solvents. This material meets ASTM D-2000-2BA specifications.
Advantages of EPDM Rubber Gasket
EPDM rubber gasket provides long term reliable sealing in extreme weather conditions and over a wide range of temperatures. Compared to other rubber gasket materials, EPDM rubber gasket offers excellent resistance against aging, wear, wind, weather, ozone, and ultraviolet light. EPDM rubber gasket also provides good electrical insulation, but custom gaskets made of EPDM rubber are not recommended for contact with most oils, gasoline, halogenated solvents, and concentrated acids.
EPDM Rubber Gasket Applications
EPDM rubber gasket can be found in many applications such as drinking water, sea water, sanitary sewage, reclaimed water, raw water, storm water, aerospace, construction and energy. Due to their elastomeric properties, custom EPDM rubber gaskets and custom EPDM rubber seals are very popular throughout various industries. We produce the highest standards of quality EPDM rubber gaskets that can withstand extreme environments.
Custom EPDM Rubber Gasket Grades
According to the different physical properties, hardness and chemical resistance, the EPDM rubber gaskets are categorized by grades Commercial (Economy) Grade EPDM Gasket, High Grade (Premium) EPDM Gasket, Molded EPDM Rubber Gasket and FDA Standard EPDM Gasket.
How to Make EPDM Rubber Gasket?
Die-cutting EPDM Rubber Gasket
Die-cutting is ideal for small to large production runs of epdm rubber gaskets. It offers exact precision at affordable prices and can be custom-made to meet a range of application requirements.
Hand-cutting EPDM Rubber Gasket
Hand-cutting is an ideal method of creating small specialized batches of EPDM rubber gaskets. It allows manufacturers to create a highly customized gasket for specialty applications. It can also be vital to creating prototype gaskets, allowing manufacturers to test the design before committing to a large production run.

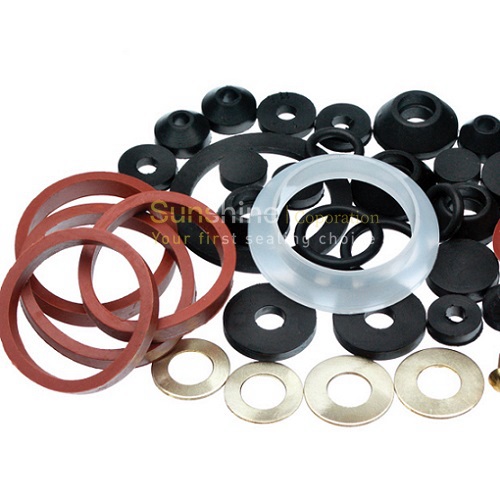

Molded Rubber Gasket
Molded EPDM rubber gasket tolerances are compliant with rubber molding industry standard RMA A2 Precision tolerances. We can make all kinds of EPDM rubber gaskets and parts as customers' drawing or dimension sizes.
CNC Machine Cutting EPMD Rubber Gaskets
If you need large quantity EPDM rubber gasket in short time, so CNC machine cutting is the best way, as it can cut gasket quickly and accurately. We can make huge rubber gasket in short time by our CNC machines, any need please contact us
EPDM Rubber Gasket Data Sheet
EPDM compound
|
Hardness shore A
|
Rubber Color
|
Temp rang (°C)
|
Tensile strength (mpa)
|
Elongation at break (%)
|
E104
|
40
|
Black
|
-40 to 120
|
10
|
550
|
E105
|
50
|
Black
|
-40 to 115
|
6.9
|
330
|
E106
|
60
|
Black
|
-40 to 115
|
6.3
|
280
|
E107
|
70
|
White
|
-40 to 105
|
6.7
|
240
|
