PTFE Sanitary Tri-Clamp Gaskets
We stocks over 50000+ pcs PTFE Sanitary Tri-Clamp Gaskets in stocks from 1/2 inch to 12 inch sizes. You can buy them from us in factory price to save your cost much
Content
PTFE Sanitary Tri-Clamp Gasket - PTC 40
PTFE sanitary tri-clamp gaskets are made of 100% PTFE materials. PTFE commonly known as Teflon and it is best known for their low-friction property, high melting temperature, high corrosion resistance, high resilience and a long product life increases its value as a sealing material.PTFE sanitary tri-clamp gaskets are used in the Food, Dairy, Beverage, Biotech, Pharmaceutical, and many other Sanitary Process industries to seal clamp connections in sanitary pipe lines. The name Tri-Clamp gasket comes from the Tri-Clover clamp which is used to hold a gasket in place. The working temp max is 260℃, it meets FDA standard specification. And the PTFE color can be blue, white, red.
Benefits of A Perfect Sanitary Tri-Clamp Gasket Seal
• Maintains or enhances product integrity• Ensures that gasket I.D. matches pipe I.D.
• Complies with FDA Standards
• Lower bacteria count

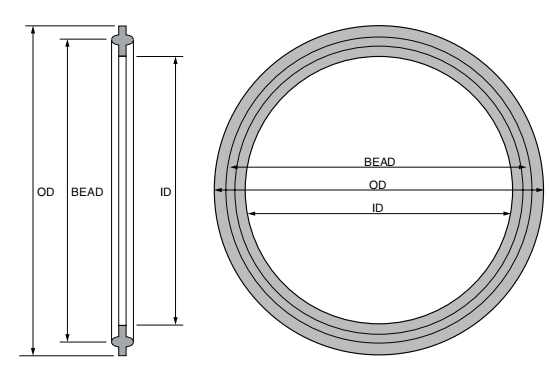

Dimension Size Chart
| Size | ID (mm) | OD (mm) | Bead (mm) |
| 1/2'' | 10.2 | 22 | n/a |
| 3/4'' | 16.2 | 22 | n/a |
| 1'' | 22.9 | 50.5 | 43.5 |
| 1 1/2'' | 35.3 | 50.5 | 43.5 |
| 2'' | 47.8 | 64 | 56.5 |
| 2 1/2'' | 60.5 | 77.5 | 70.5 |
| 3'' | 73.1 | 91 | 83.5 |
| 4'' | 97.7 | 119 | 110 |
| 5'' | 123.5 | 144.2 | 134.3 |
| 6'' | 147.2 | 167 | 156.5 |
| 8'' | 198 | 217.4 | 207 |
| 10'' | 247.4 | 268 | 257 |
| 12'' | 298.2 | 319 | 309 |
