We have all ranges of Filled PTFE Teflon gaskets such as glass fiber, silica, Glass Microspheres filled PTFE Teflon gasket seals. Short time for delivery, factory price and Free Sample
Content

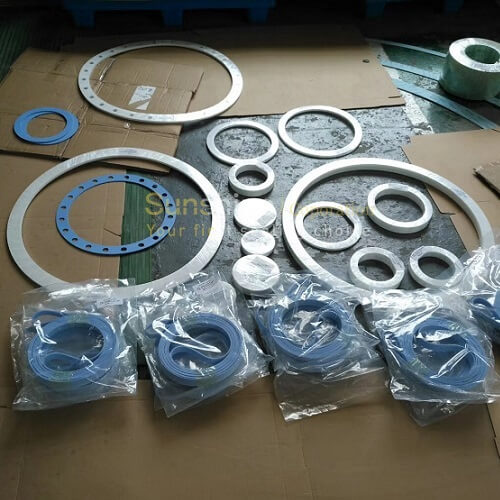

Glass Fiber Filled PTFE Gasket - SULON 2209
Glass fiber filled PTFE gasket (known as fibreglass reinforced PTFE gasket) is manufactured from a base of virgin PTFE which is strengthened by the addition of 15% or 25% glass fiber. This 15% or 25% glass fiber filled PTFE gasket exhibits less deformation under loads at both high and low temperatures which increases its utility as a sealing medium. The addition of glass also improves the wear and friction behaviour of the PTFE sheet Gass filler offers better creep and wear resistance, improves dimensional stability, raises the heat deflection temperature, improves creep resistance, and improves electrical insultative properties.
Advantages of Glass Fiber Filled PTFE Gasket
Glass fiber filled PTFE gasket has very good electrical insulation properties, extremely good chemical resistance against virtually all media and good sliding properties and improved dimensional stability and creep resistance.
Specification
Color: Blue or Grey-white Composition: PTFE with Glass Fiber Standards: FDA Approved Max Temperature: 260°C Pressure Max: 70 Bar Thickness: 1.5mm, 3mm
