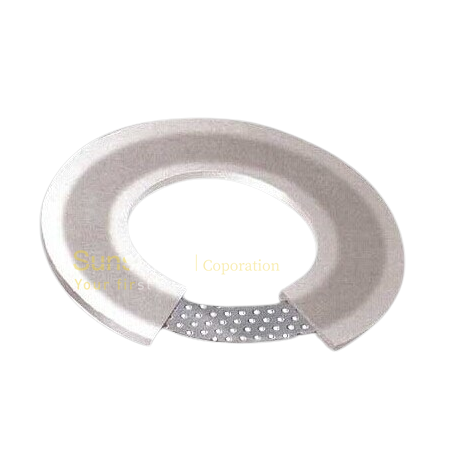

PTFE Stainless Steel lined Gaskets
Compared to virgin PTFE gaskets, PTFE Stainless Steel lined Gaskets can bear higher working pressure, the steel can be ss304
Content
PTFE Stainless Steel lined Gaskets - SULON 502
PTFE stainless steel lined gaskets are highly recommended in nearly all applications that require the sealing of metallic flange joints in high temperature and high pressure conditions to prevent cold flow which can lead to joint failure.PTFE stainless steel lined gaskets are reinforced with perforated stainless steel 304 inserts, and PTFE stainless steel lined gaskets have properties that are far superior and more cost effective than other gasket designs.
Why We Use PTFE Stainless Steel lined Gaskets?

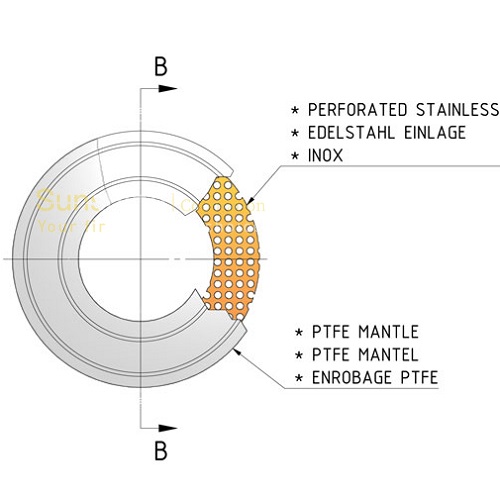

PTFE stainless steel lined gaskets are designed to meet the needs of many different piping applications, they are ideal whenever a non-metallic gasket must be used. Unaffected by even the most aggressive chemicals, PTFE steel lined gaskets combine all the properties of PTFE together with exceptional sealability.PTFE stainless steel lined gaskets are engineered with a perforated stainless steel ss304 insert that is mesh molded in PTFE material, these gaskets exhibit exceptional creep resistance for the reliable sealing of steel piping flanges.
Type of industries
PTFE stainless steel lined gaskets can be used in all chemical industries, machine engineering, food-processing industry.Technical Data Sheet
Temperature : -100 to 250 °CPressure : 0 to 100 bar
PH Range: 0 - 14
