G-ST Rubber-Steel Metal Gaskets
G-ST Rubber-Steel Metal Gaskets from us can be FDA certificated for water pipeline application. Rubber can be EPDM, NBR, HNBR with Carbon Steel
Content

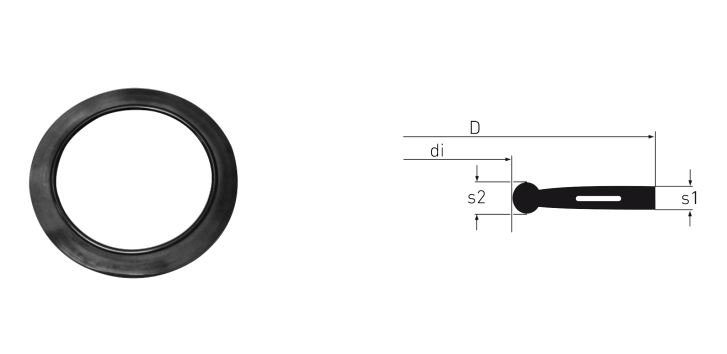

G-ST Rubber-Steel Metal Gaskets - G-ST-P/S-11
G-ST rubber-steel metal gaskets are used in bolted relationships by which only lower bolting factors may be realised. The elastomer rubber properties enable on the one hand a really good adjustability for the sealing surface area, alternatively low seepage prices are achieved as a result of homogeneous structure. The use of a centrally equipped, corrosion safeguarded and vulcanised metallic insert improves the blow-out opposition and stability. Consequently, the gasket is simple to manage even at huge nominal widths. Severe adhesion between steel placed as well as the rubberized jacketing is made sure because of the vulcanisation. No shifting, removal or even blow-out is feasible even with the top pressure loads. The gaskets have a variety of programs dependant upon the pertinent elastomer and are compatible with normal water, water vapour, gasoline, oxygen, acids, bases, hydrocarbons whilst software temps up to 200 °C are possible. G-ST rubber-steel metal gaskets are manufactured in various forms based on the app place as well as the given flange materials and may be used in off- stress and major load applications.
Properties
G-ST rubber-steel metal gaskets have substantial gas and fluid tightness even at very low work surface pressures and compensation for surface area disorders, really good flexibility and excellent rehabilitation behaviour. When using G-ST rubber-steel metal gaskets, the flange and bolts can be of the weaker design and style. And contains Very good payment habits in case there is angle deviations and very very good handling during transport, installing and dismantling, mechanically steady specific marking of every gasket at the gasket body.Applications
G-ST rubber-steel metal gaskets are suitable for pipeline flanges, device and container flanges, gas or normal water pipeline construction. Very good for vacuum, plastic-type material pipelines, rubberised flanges and connections understanding of pressure like glass flange.
