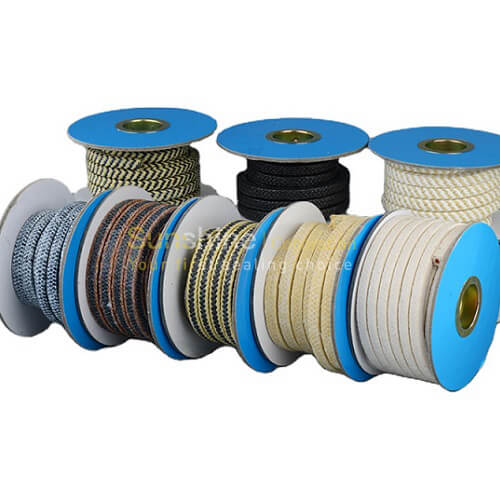

PTFE Braided Packing with Silicone Oil Impregnation
The HS code for PTFE Braided Packing with Silicone Oil Impregnation is 39209910.00 and its temperature range is from -260°C to 260°C (-400°F to 500°F)
Content
PTFE Braided Packing with Silicone Oil Impregnation - Style 2010
PTFE braided packing with silicone oil impregnation is braided from PTFE fiber yarn with silicone oil lubricant. The silicone oil lubricant added in the ptfe fiber packing enhance the heat exchange effective. The PTFE braided packing with silicone oil impregnation has low factor of friction which can prevent deterioration of a surface of a shaft, promotes heat removal from a shaft, even on greater speeds. It is a braided packing approaches for high concentrate chemical mixes. Manufacturing with silicone rubber core is possible.
Application Media of PTFE Braided Packing with Silicone Oil Impregnation
PTFE braided packing with silicone oil impregnation is widely used in piston pumps, mixing agitator, the reaction to push, industrial and chemical industries with the valves. And it can be used for a variety of media, including corrosive medium: hot and cold water, steam, solvents, oil, grease, dilute acids and alkalis, salt water, sewage and so on.
Advantages of PTFE Braided Packing with Silicone Oil Impregnation
Compared with oil-free PTFE braided packing, PTFE braided packing with silicone oil impregnation has better lubricity and lower friction coefficient. So it has low friction finish and prevents leakage. It is also well suited for different sealing applications.
General Data Sheet
Temperature
Pressure Limit
Min Temp
- 260 °C
Static
200 bar
Max Temp
260 °C
Rotating
20 bar
Density
1.45 g/cm3
Reciprocating
150 bar
Shaft Speed
12 m/s
Ph Value
0 - 14
Package and Size:
The size for PTFE Braided Packing with Silicone Oil Impregnation we can make is from 3 mm to 50 mm. The PTFE braided gland packing can be 2 kgs, 5 kgs and 10 kgs per roll.
