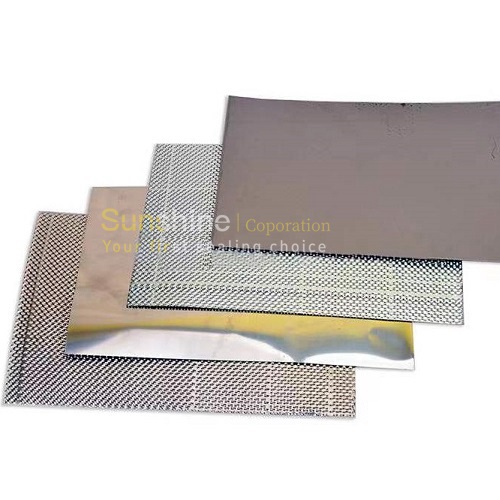

Graphite Sheet Reinforced with Flat SS 304 Foil Inserted
As the China Supplier and Manufacturer of Graphite Sheet Reinforced with Flat SS 304 Foil Inserted, we offer them in very good price and quick delivery time
Content
Graphite Sheet Reinforced with Flat SS 304 Foil Inserted - T315
Graphite sheet reinforced with flat SS 304 foil inserted is a graphite laminate material with one or more thin, flat stainless steel 316 insertions. The thickness of the reinforcement is 0.05mm. The SS 304 flat foil reinforced graphite sheet is fixed to the insertion by means of a super thin chloride-free adhesive layer. This reinforcement results in a sturdy gasket which is relatively easy to handle and simple to process into gaskets.
Application Service
Graphite sheet reinforced with flat SS 304 foil inserted is used in a wide range of applications in the chemical and petrochemical and manufacturing industries including pumps, compressors and pipe joints.
Dimension Availability
Thickness range = 1.0mm to 3.0mm Standard sheet size = 1.0m x 1.0m, 1.5m*1.5m Other thicknesses, width and length available on request.
All Types of 0.05mm Thickness Stainless Steel Foils Inserted Graphite Sheet
T310 - Reinforced Flexible Graphite Sheet with flat SS 316L foil T315 - Reinforced Flexible Graphite Sheet with flat SS 304 foil T318 - Reinforced Flexible Graphite Sheet with flat SS 321 foil

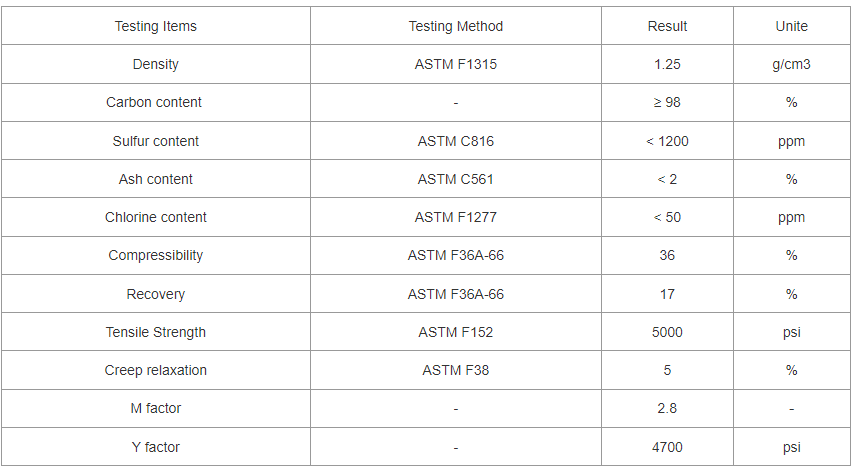

Physical Properties of Flat SS 304 Foil Inserted Graphite Sheet
