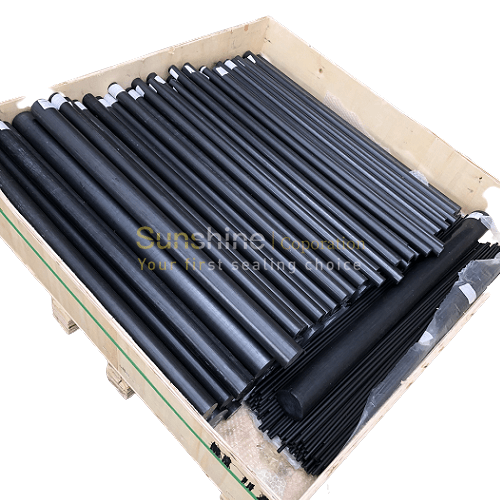

25% Carbon Fiber Filled PTFE Rod
25% Carbon Fiber Filled PTFE Rod is used in dynamic seal applications with rotating and alternating movements
Content
25% Carbon Fiber Filled PTFE Rod - CF10
25% carbon fiber filled PTFE rod is made of PTFE resin filled with 25% carbon fiber, the carbon fiber gives improved compression and wear resistance. In general less filler is needed than glass fibre to produce the same effect and it also has excellent chemical resistance. 25% carbon fiber filled PTFE rod materials have higher thermal conductivity and a lower coefficient of friction than their glass fiber counterparts. 25% carbon fiber filled PTFE rods have a long wear life and excellent extrusion resistance. As their glass fiber equivalents, and it is used in seal components for static and dynamic application and against chromium plate and steel.Other Types of Carbon Fiber Filled PTFE
Style CF10 - 10% carbon fiber filled PTFE RodStyle CF15 - 15% carbon fiber filled PTFE Rod
Style CF20 - 20% carbon fiber filled PTFE Rod
Typical Applications
10%, 15% or 25% carbon fiber filled PTFE rod is used in dynamic seal applications with rotating and alternating movements, and It is thoroughly used in seals that require a high-pressure resistance to wear. (Piston Rings for unlubricated compressors and bearing).Properties of 25% Carbon Fiber Filled PTFE
|
Properties |
Test Methods |
Test Results |
Test Unit |
| Density |
ASTM D795 |
2.2 |
g/cm3 |
| Hardness shore D | ASTM D2240 | 61 |
shore D |
|
Tensile strength |
ASTM D4745 | 23 | mpa |
| Elongation at break 23°C |
ASTM D4745 |
210 |
% |
| Coefficient of Friction, Static | ASTM D1894 | 0.025 |
- |
